Micro Cilia
Earcons Micro Cilia Wood Wool Fibre
Earcons Micro Cilia Magnesite bonded wood wool acoustic panel. Exquisite surface structure building biologically recommended. Earcons Micro Cilia Magnesite Wood Wool extremely strong just likes the Micro beehive-type porous structure, which achieve excellent sound and heat insulation. Therefore, rendering architects with the best solution for health,
Environment Friendly
Earcons Micro Cilia Wood Wool fibers are bonded with magnesite; bonded wood wool boards are produced. Slabs of bonded wood wool are environmentally friendly construction and insulation materials as they do not comprise organic binders.

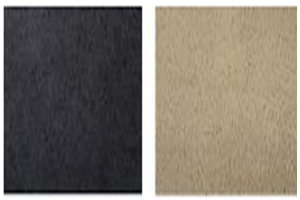

Colours
The Earcons Micro Cilia Magnesite wood wool panels are available in Black & White.
Technical Performance
Thermal Conductivity - 0.08 Wm/k - IS 3346 Noncombustibility - Mass loss 53% @ 750 oC - ISO 1182 Ignitibility - 'P' - BS 476 Part 5 Fire Propagation Index - 5.17 - BS 476 Part 6 Surface Spread - Class I - BS 476 Part 7 Specific Optical Density of Smoke - Flaming Exposure 26.28 Dm (Corr) - ASTM E662
Perforation Patterns
| Thickness : | 0.5 -0.7 mm |
| Edge : | Square, Tapper |
| Surface : | Plain, Perforation |
| Fire Class : | Class A |
| Sizes : | 600x600/1200, 100/200/300 x1200 |
| NRC : | 0.75 |
| Density : | 980 Kg/m3 |
| Fire Class : | Class A |
| Climate : | 99 RH |
| Weight : | 3-6 Kg/m2 |
| Light Reflection : | 78 % |

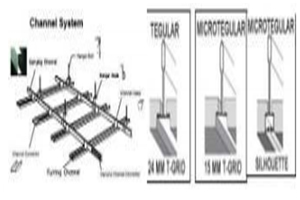

Installation
The installation process falls under interior decorator, and should be performed within monitored humidity and temperature settings. But the duct-releasing procedure should be completed prior to its commencement. Some salient features of the process include: T-Grid System for Ceiling & Channel Suspension System
Application
The wide application spectrum comprises of such areas:, Auditorium, Multiplex, Library, Hotels, Indoor stadiums, Meeting halls, Hospitals, Educational, Industrial, Airport, Recording studio, Museum, Malls, Banquet Hall etc.
